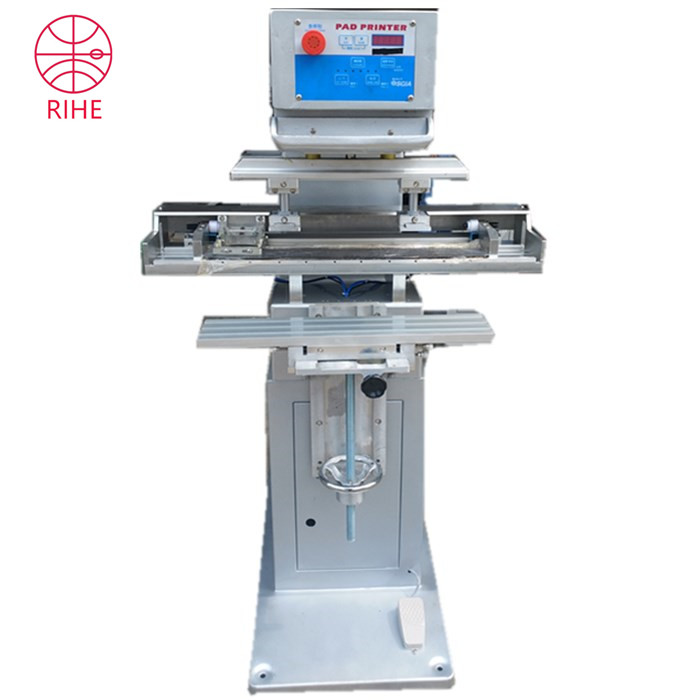

Transverse Scraping Oil Cup Environmental Imprinting Machine
Easy ways to get the answers you need.
1. The micro-computer controls each function action, which is simple and convenient to operate, and can realize manual/semi-automatic full-automatic operation.
2、單色橫刮油盅移印機,可印刷長條形圖案;
2. Monochromatic cross-scraper oil cup transfer machine, which can print long strip pattern;
3、特制油盅上墨,不易揮發,飛濺,操作環境清潔舒適,油墨濃度穩定,提高印刷質量;
3. Special oil cup ink, not easy to volatilize, splash, clean and comfortable operating environment, stable ink concentration, improve printing quality;
4、獨立的膠頭上下行程和速度調節;
4. Independent rubber head up and down stroke and speed regulation;
5、印刷速度可調節,以滿足不同的印刷要求;
5. Printing speed can be adjusted to meet different printing requirements.
6、可以兩次粘墨移印一次,以便獲得較大的印刷油墨;
6. Viscose ink can be transferred twice in order to obtain larger printing ink.
7、可以前后空行不落膠,防止稍停時油墨干涸;
7. It can avoid the ink drying up when the ink stops slightly.
8、油盅直徑 90 mm;
8. The diameter of oil cup is 90 mm.
9、鋼板尺寸 600*100 mm;
9. The steel plate size is 600*100 mm.
10、工作臺尺寸 264x450 mm;
10. Workbench size 264 x 450 mm;
11、最大移印速度 900pcs/hr;
11. Maximum transfer speed 900pcs/hr;
12、電源 110/220v 60/50Hz 50w;
12. Power supply 110/220v 60/50Hz 50w;
13、外形尺寸 1400x1000x1733mm;
13. The shape size is 1400x1000x1733mm.
14、重量 300Kg;
14. Weight 300 Kg;
