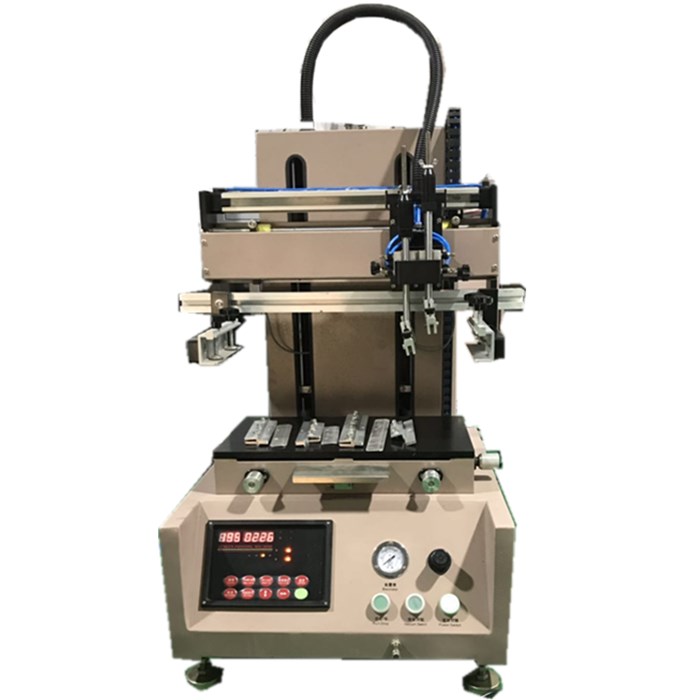

Product introduction:

1 微電腦控制各功能動作，操作簡單方便，內設五位自動計數器。

1. Microcomputer controls the action of each function. It is simple and convenient to operate. It has five-bit automatic counter.

2 所有氣動元件采用進口品牌，確保機器質量?jī)?yōu)良。

All pneumatic components adopt imported brands to ensure the quality of the machine.

3 左右橫刮采用有桿氣缸驅動，走位平穩順滑。

3. Around the scraper is driven by a rod cylinder, and its position is smooth and smooth.

4 工作臺可進行前后，左右、平面擺角微調，網框可以前后微調，調校方便，快捷。

4 Workbench can be fine-tuned before and after, left and right, plane pendulum angle, mesh frame can be fine-tuned before and after, adjustment is convenient and fast.

5 自動平衡刮刀，保證刮油壓力均衡，刮刀壓力可自由調節，.印刷行程和速度可調，能滿足不同的印刷要求，整機機械誤差5個絲以?xún)?nèi)。

Automatic balancing scraper to ensure oil pressure balance, scraper pressure can be adjusted freely, printing stroke and speed can be adjusted to meet different printing requirements, the machine mechanical error is less than 5 silks.

6 工作臺:T槽臺/吸風臺可選擇。

6 Workbench: T groove platform/suction platform is optional.

技術參數：

Technical parameters:

型號 2030xf

Model 2030xf

最大網框面積 250*450

Maximum mesh area (mm) 250*450

工作臺面積 250*400

Workbench area (mm) 250*400

最大印刷面積 200*280

Maximum printing area (mm) 200*280

最大工件印刷高度 50mm

Maximum workpiece printing height (mm) 50mm

印刷速度 1500次/小時

Printing speed 1500 times per hour

電源 110/220V 50/60HZ 40W

Power supply 110/220V 50/60HZ 40W
