Curved screen printer
RH-PA-300E 曲面絲印機
Dongguan Rihe Screen Printing Equipment Co., Ltd. was established in 2002. It is a professional research and development, design, production and sales of various printing equipment.
We focus on the manufacture of high-end pad printers, screen printers, and peripheral equipment for silk pad printing. With excellent cost performance and perfect pre-sale and after-sales service...
WE'RE HERE TO HELP
Easy ways to get the answers you need.
Contact Now
Easy ways to get the answers you need.

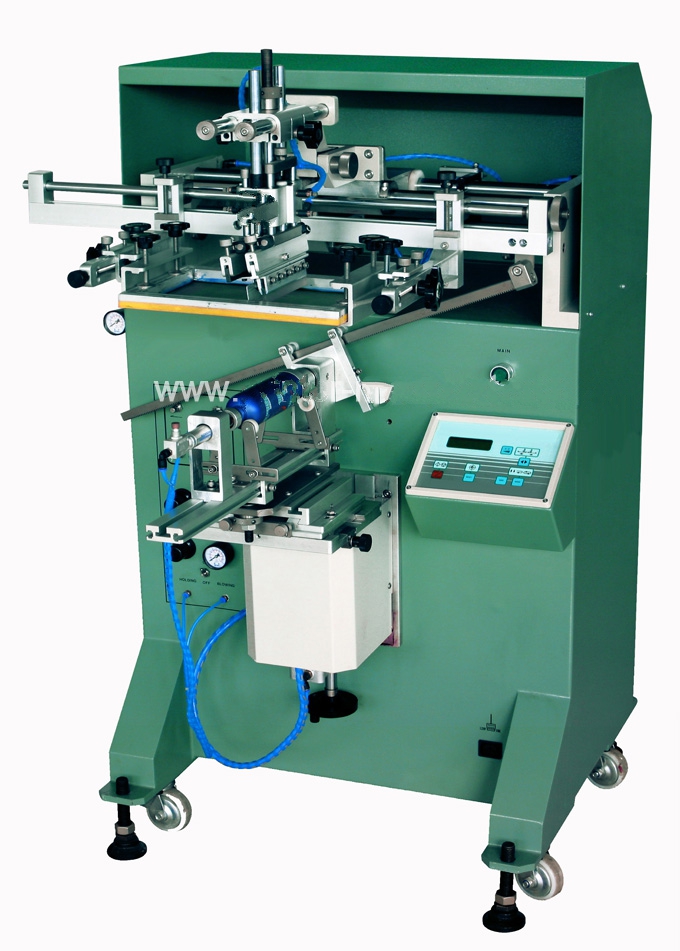

ylinder Screen Printer RH-PA-300E . It suitable to print on flat, round, oval shaped products.
Suitable for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface and made of various materials such as metal, plastic, ceramic, glass, wood etc...Printing objects such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc...
Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3^colors.
Feature
1. Advanced fully automatic computerized system control,easy handing .
2. Built-in four figures automatic LED digital counter
3. Suitable for printing on round, cylindrical, oval or flat project
4. Light-weight, strong aluminum cast machine frame, Adujustability of routs and speeds
5. Automatic oil scrabbing, oil return and lifting table
6. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
7. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
8. Net frame work table can be adjusted around emblem, tone down logo, printing, high precision, easy to adjust ,quick.
9. Adopt German FESTO components,Main Parts FESTO cylinde made by Geramny
Specifications
1. Model number: RH-PA-300E
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ82mm
4. (Round)Max printing arc length: 270mm
5.(oblate)Max printing diameter: 420mm
6.(flat) Max printing area: 260x220mm
7. Printing Speed: 1300 PC/H
8. Machine/ Weight: 115kg
9. Air pressure: 0.5Mpa
10. Voltage power: 220V/ 60HZ or 110V/5
